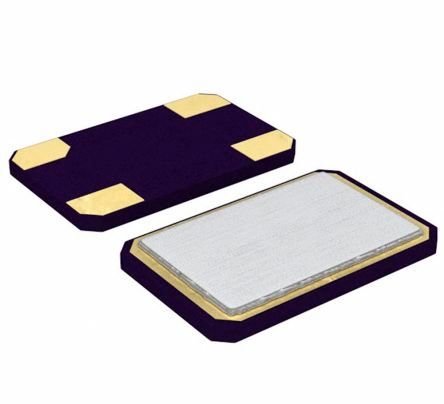

16 MHz SMD crystal oscillator with 20ppm frequency tolerance and 50ppm frequency stability. Features 18pF load capacitance, 50 Ohm ESR, and a compact 5mm x 3.2mm x 1.1mm (L x W x H) CSMD package. Operates across a -20°C to 70°C temperature range and offers shielded termination for reliable performance. Supplied on tape and reel for efficient surface mount assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Abracon ABM3B-16.000MHZ-B2-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 20ppm |
| Package/Case | CSMD |
| Current Rating | 1.82A |
| Depth | 3.2mm |
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 16MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.043inch |
| Lead Free | Lead Free |
| Length | 5mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operating Frequency | 16 MHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | ABM3B |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Tolerance | 20ppm |
| Width | 0.126inch |
| RoHS | Compliant |
