25MHz quartz crystal, surface mount, 4-pin ceramic package (CSMD) with dimensions of 5mm x 3.2mm x 0.043 inches. Features 10ppm frequency stability and tolerance, 10pF load capacitance, and 50 Ohm ESR. Operates within a temperature range of -10°C to 60°C. RoHS compliant and supplied on tape and reel.
Frequency25MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM3B-25.000MHZ-10-1-U-T technical specifications.
General
Package/Case
CSMD
Depth
3.2mm
ESR (Equivalent Series Resistance)
50R
Frequency
25MHz
Frequency Stability
10ppm
Frequency Tolerance
10ppm
Height
0.043inch
Lead Free
Lead Free
Length
5mm
Load Capacitance
10pF
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Mount
Surface Mount
Operating Frequency
25 MHz
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ABM3B
Termination
SMD/SMT
Tolerance
10ppm
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Abracon ABM3B-25.000MHZ-10-1-U-T Datasheet
Download the complete datasheet for Abracon ABM3B-25.000MHZ-10-1-U-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

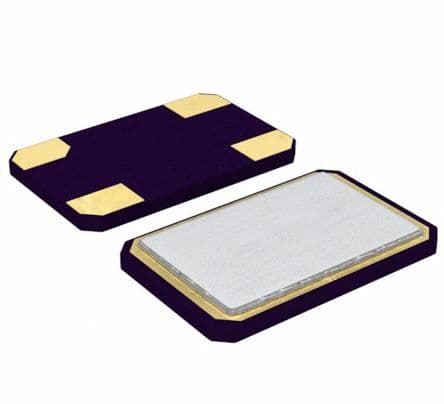

Product Images
