Frequency25MHz
PackageSMD/SMT
Capacitance1.8E-11F
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM3B-25.000MHZ-B4U-T technical specifications.
General
Capacitance
1.8E-11F
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
50R
Frequency
25MHz
Frequency Stability
10ppm
Frequency Tolerance
30ppm
Height
0.043inch
Lead Free
Lead Free
Length
0.197inch
Load Capacitance
18pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Frequency
25 MHz
Packaging
Cut Tape
Series
ABM3B
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Abracon ABM3B-25.000MHZ-B4U-T Datasheet
Download the complete datasheet for Abracon ABM3B-25.000MHZ-B4U-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

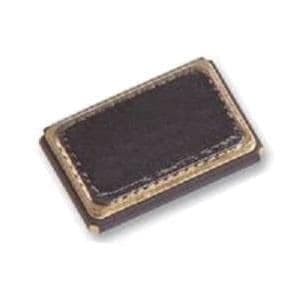

Product Images
