8 MHz SMD crystal oscillator with 20ppm frequency tolerance and 50ppm frequency stability. Features 18pF load capacitance and 200 Ohm ESR. Operates within a -20°C to 70°C temperature range. Packaged in a 5mm x 3.2mm x 1.1mm CSMD package, suitable for surface mount applications.
Frequency8MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM3B-8.000MHZ-B2-T technical specifications.
General
| Package/Case | CSMD |
| Depth | 3.2mm |
| ESR (Equivalent Series Resistance) | 200R |
| Frequency | 8MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 20ppm |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operating Frequency | 8 MHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Series | ABM3B |
| Series Resistance | 200R |
| Termination | SMD/SMT |
| Tolerance | 20ppm |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABM3B-8.000MHZ-B2-T Datasheet
Download the complete datasheet for Abracon ABM3B-8.000MHZ-B2-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

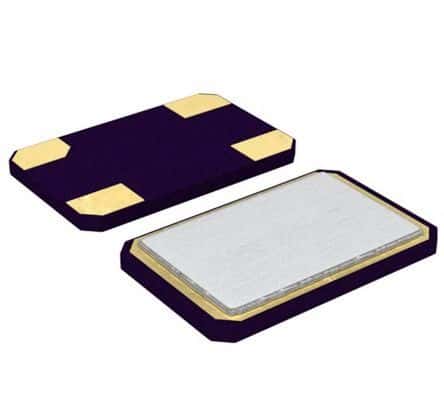

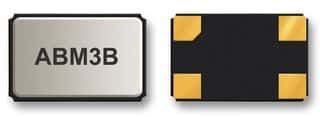

Product Images
