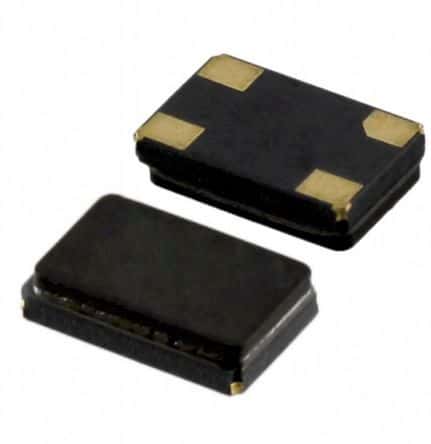

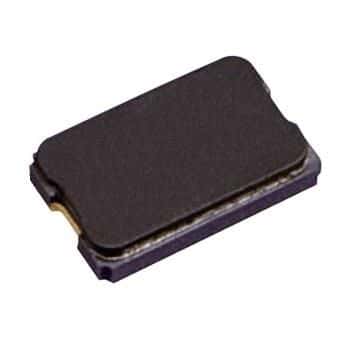

12 MHz SMD crystal oscillator featuring ±30 ppm frequency tolerance and ±30 ppm frequency stability. Designed for surface mounting, this 4-pin ceramic component operates with an 18 pF load capacitance in fundamental mode. It offers a low series resistance of 60 Ohms and a compact 5mm x 3.2mm x 1.3mm package, suitable for automotive applications within a -40°C to 85°C temperature range.
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM3C-12.000MHz-D4Y-T technical specifications.
General
Package Family Name
SMD
Package/Case
CSMD
Package Description
Ceramic Surface Mount Device
Pin Count
4
PCB
4
Package Length (mm)
5
Package Width (mm)
3.2
Package Height (mm)
1.3(Max)
Seated Plane Height (mm)
1.3(Max)
Pin Pitch (mm)
3.7
Package Material
Ceramic
Mounting
Surface Mount
Type
Crystal
Standard Frequency
12MHz
Frequency Tolerance
±30ppm
Frequency Stability
±30ppm
Load Capacitance
18pF
Mode of Oscillation
Fundamental
Series Resistance
60Ohm
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Compliance
Cage Code
3KDW2
EU RoHS
Yes with Exemption
HTS Code
8541600050
Schedule B
8541600025
ECCN
EAR99
Automotive
Yes
RoHS Versions
2011/65/EU, 2015/863
Datasheet
Abracon ABM3C-12.000MHz-D4Y-T Datasheet
Download the complete datasheet for Abracon ABM3C-12.000MHz-D4Y-T to view detailed technical specifications.
