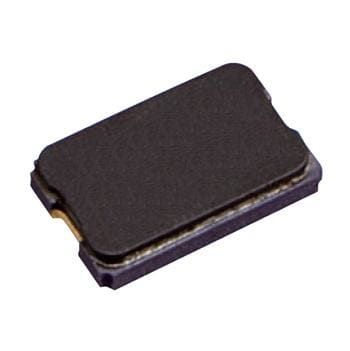

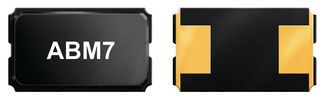

The ABM7 Series 12.288MHz crystal features a 20ppm frequency tolerance and operates within a temperature range of -40°C to 85°C. It has a load capacitance of 18pF and an equivalent series resistance of 60 ohms. The crystal is packaged in a surface mount SMD/SMT package and is available in quantities of 1000. It is lead free and compliant with standard packaging and reel specifications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Abracon ABM7-12.288MHZ-D2Y-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Abracon ABM7-12.288MHZ-D2Y-T technical specifications.
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 12.288MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.055inch |
| Lead Free | Lead Free |
| Length | 0.236inch |
| Load Capacitance | 18pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 12.288 MHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | ABM7 |
| Termination | SMD/SMT |
| Tolerance | 20ppm |
| Width | 0.138inch |
| RoHS | Compliant |
