18.432 MHz crystal oscillator with ±20ppm frequency tolerance and ±30ppm frequency stability. Features 18pF load capacitance and 50 Ohm ESR. This surface mount component is housed in a compact CSMD package measuring 6mm x 3.5mm x 0.055 inches. Operates across a temperature range of -40°C to 85°C and is supplied on tape and reel.
Frequency18.432MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM7-18.432MHZ-D2Y-T technical specifications.
General
| Package/Case | CSMD |
| Depth | 3.5mm |
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 18.432MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.055inch |
| Lead Free | Lead Free |
| Length | 6mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 18.432 MHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Series | ABM7 |
| Series Resistance | 50R |
| Termination | SMD/SMT |
| Tolerance | 20ppm |
| Width | 0.138inch |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABM7-18.432MHZ-D2Y-T Datasheet
Download the complete datasheet for Abracon ABM7-18.432MHZ-D2Y-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

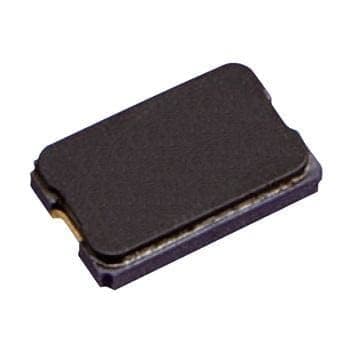

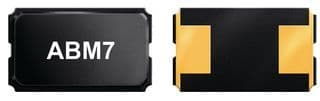

Product Images
