Frequency48MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM7-48.000MHZ-D2Y-F-T technical specifications.
General
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
50R
Frequency
48MHz
Frequency Stability
30ppm
Frequency Tolerance
20ppm
Height
1.4mm
Lead Free
Lead Free
Length
6mm
Load Capacitance
18pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Frequency
48 MHz
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Yes
Series
ABM7
Termination
SMD/SMT
Tolerance
20ppm
Width
3.3mm
Compliance
RoHS
Compliant
Datasheet
Abracon ABM7-48.000MHZ-D2Y-F-T Datasheet
Download the complete datasheet for Abracon ABM7-48.000MHZ-D2Y-F-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

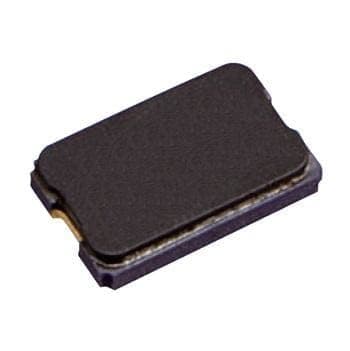

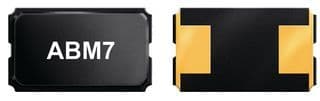

Product Images
