12MHz fundamental quartz crystal, SMD package, 3.2mm x 2.5mm x 0.8mm. Features 20ppm frequency tolerance, 50ppm stability, and 18pF load capacitance. Operating temperature range of -20°C to 70°C. Hermetically sealed ceramic construction with 120 Ohm ESR. Surface mount termination, supplied on tape and reel.
Frequency12MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM8-12.000MHZ-B2-T technical specifications.
General
Package/Case
CSMD
Depth
2.5mm
ESR (Equivalent Series Resistance)
120R
Frequency
12MHz
Frequency Stability
50ppm
Frequency Tolerance
20ppm
Height
0.8mm
Lead Free
Lead Free
Length
3.2mm
Load Capacitance
18pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Frequency
12 MHz
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ABM8
Series Resistance
120R
Termination
SMD/SMT
Tolerance
20ppm
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Abracon ABM8-12.000MHZ-B2-T Datasheet
Download the complete datasheet for Abracon ABM8-12.000MHZ-B2-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

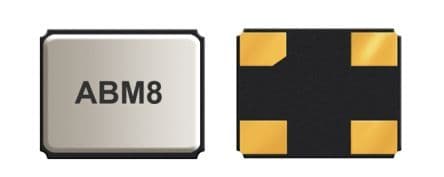

Product Images
