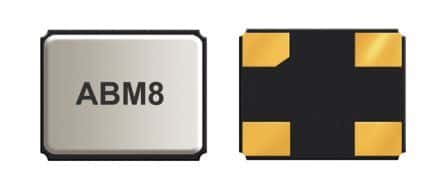

Ultra miniature ceramic crystal operating at 16 MHz with a frequency tolerance and stability of ±10 ppm. Features a load capacitance of 10 pF and an ESR of 70 Ohms. Designed for surface mount applications with a compact CSMD package measuring 3.2mm x 2.5mm x 0.8mm. Operates across a temperature range of -10°C to +60°C. Packaged in tape and reel for efficient assembly.
Sign in to ask questions about the Abracon ABM8-16.000MHZ-10-1-U-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Abracon ABM8-16.000MHZ-10-1-U-T technical specifications.
| Package/Case | CSMD |
| Depth | 2.5mm |
| ESR (Equivalent Series Resistance) | 70R |
| Frequency | 16MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 10pF |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Operating Frequency | 16 MHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | ABM8 |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Width | 2.5mm |
| RoHS | Compliant |
