This Abracon crystal operates at 24 MHz with a frequency stability of 50 ppm and a load capacitance of 18 pF. It is designed for surface mount applications and has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The crystal is packaged in a hermetically sealed, ultra miniature ceramic package with four pins and is compliant with RoHS regulations. It is available on tape and reel for easy handling and installation.
Frequency24MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM8-24.000MHZ-D2-T technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 24MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 20ppm |
| Lead Free | Lead Free |
| Load Capacitance | 18pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 24 MHz |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ABM8 |
| Series Resistance | 50R |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABM8-24.000MHZ-D2-T Datasheet
Download the complete datasheet for Abracon ABM8-24.000MHZ-D2-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

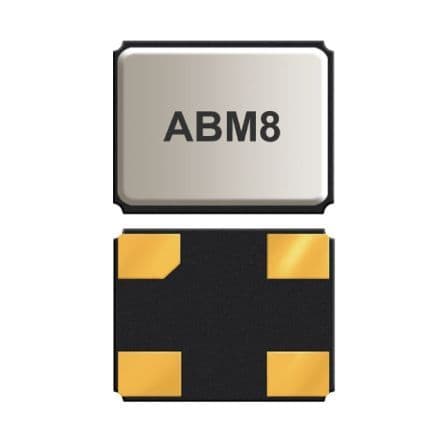

Product Images
