Frequency29.4912MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM8-29.4912MHZ-B2-T technical specifications.
General
Package/Case
CSMD
Depth
2.5mm
ESR (Equivalent Series Resistance)
50R
Frequency
29.4912MHz
Frequency Stability
50ppm
Frequency Tolerance
20ppm
Height
0.031inch
Lead Free
Lead Free
Length
3.2mm
Load Capacitance
18pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Frequency
29.4912 MHz
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
ABM8
Series Resistance
50R
Termination
SMD/SMT
Tolerance
20ppm
Width
0.098inch
Compliance
RoHS
Compliant
Datasheet
Abracon ABM8-29.4912MHZ-B2-T Datasheet
Download the complete datasheet for Abracon ABM8-29.4912MHZ-B2-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

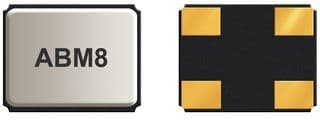

Product Images
