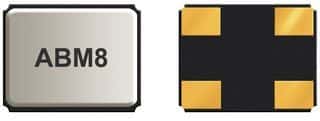

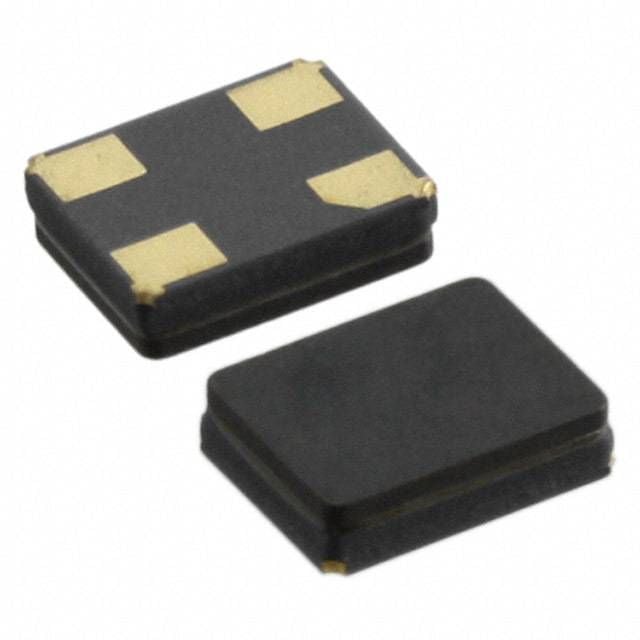

ABM8G-12.288MHZ-B4Y-T

Name: ABM8G-12.288MHZ-B4Y-T Abracon
Brand: Abracon
SKU: ABM8G-12.288MHZ-B4Y-T

CRYSTAL 12.2880MHZ 10PF SMD

Frequency12.288MHz

PackageSMD/SMT

MountingSurface Mount

Quick Jump:

Abracon ABM8G-12.288MHZ-B4Y-T technical specifications.

Package/Case	SMD/SMT
Depth	2.5mm
ESR (Equivalent Series Resistance)	80R
Frequency	12.288MHz
Frequency Stability	30ppm
Frequency Tolerance	30ppm
Height	0.039inch
Length	3.2mm
Load Capacitance	10pF
Max Operating Temperature	70°C
Min Operating Temperature	-20°C
Mount	Surface Mount
Package Quantity	1000
Packaging	Tape and Reel
Reach SVHC Compliant	No
Series	ABM8G
Termination	SMD/SMT
Tolerance	30ppm
Width	0.098inch
