Surface mount crystal oscillator operating at 13.56 MHz. Features 18pF load capacitance and 20ppm frequency tolerance. ESR is 80 Ohms, with frequency stability of 30ppm. Housed in a compact CSMD package measuring 3.2mm x 2.5mm x 1mm, suitable for operation between -40°C and 85°C. Packaged in tape and reel for automated assembly.
Frequency13.56MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM8G-13.560MHZ-18-D2Y-T technical specifications.
General
| Package/Case | CSMD |
| Depth | 2.5mm |
| ESR (Equivalent Series Resistance) | 80R |
| Frequency | 13.56MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 20ppm |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 13.56 MHz |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | ABM8G |
| Series Resistance | 80R |
| Termination | SMD/SMT |
| Tolerance | 20ppm |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABM8G-13.560MHZ-18-D2Y-T Datasheet
Download the complete datasheet for Abracon ABM8G-13.560MHZ-18-D2Y-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

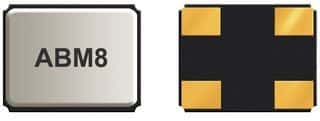

Product Images
