48MHz SMD crystal oscillator with 18pF load capacitance and 20ppm frequency tolerance. Features 50 Ohm ESR, 30ppm frequency stability, and operates from -40°C to 85°C. Packaged in a CSMD case with dimensions of 3.2mm length, 2.5mm depth, and 2.49mm width. Surface mount termination suitable for tape and reel packaging.
Frequency48MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM8G-48.000MHZ-18-D2Y-T technical specifications.
General
| Package/Case | CSMD |
| Depth | 2.5mm |
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 48MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.039inch |
| Length | 3.2mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Series | ABM8G |
| Series Resistance | 50R |
| Termination | SMD/SMT |
| Tolerance | 20ppm |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABM8G-48.000MHZ-18-D2Y-T Datasheet
Download the complete datasheet for Abracon ABM8G-48.000MHZ-18-D2Y-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

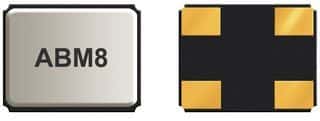

Product Images
