Surface mount fixed inductor featuring 150nH inductance with a 5% tolerance, tested at 50MHz. This unshielded, ceramic core component offers a current rating of 300mA and a DC resistance of 1 Ohm. Operating across a temperature range of -55°C to 125°C, it is housed in an 0805 (2012 metric) case and packaged on tape and reel.
Package0805
Current Rating300mA
MountingSurface Mount
Inductance150nH
Quick Jump:
Technical Specifications
Abracon AIMC-0805-R15J-T technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ceramic |
| Current Rating | 300mA |
| DC Resistance (DCR) | 1R |
| Height | 0.85mm |
| Height - Seated (Max) | 0.041inch |
| Inductance | 150nH |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max DC Current | 300mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Q Factor | 13 |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 500MHz |
| Series | AIMC-0805 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 50MHz |
| Tolerance | 5% |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Abracon AIMC-0805-R15J-T Datasheet
Download the complete datasheet for Abracon AIMC-0805-R15J-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

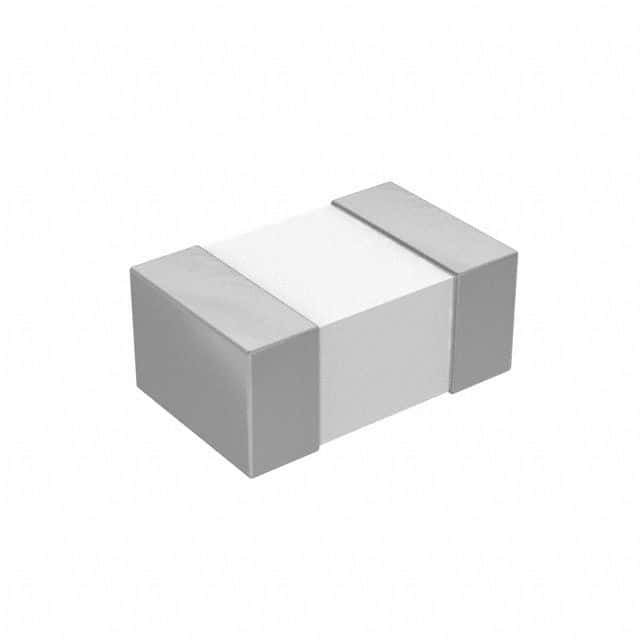

Product Images
