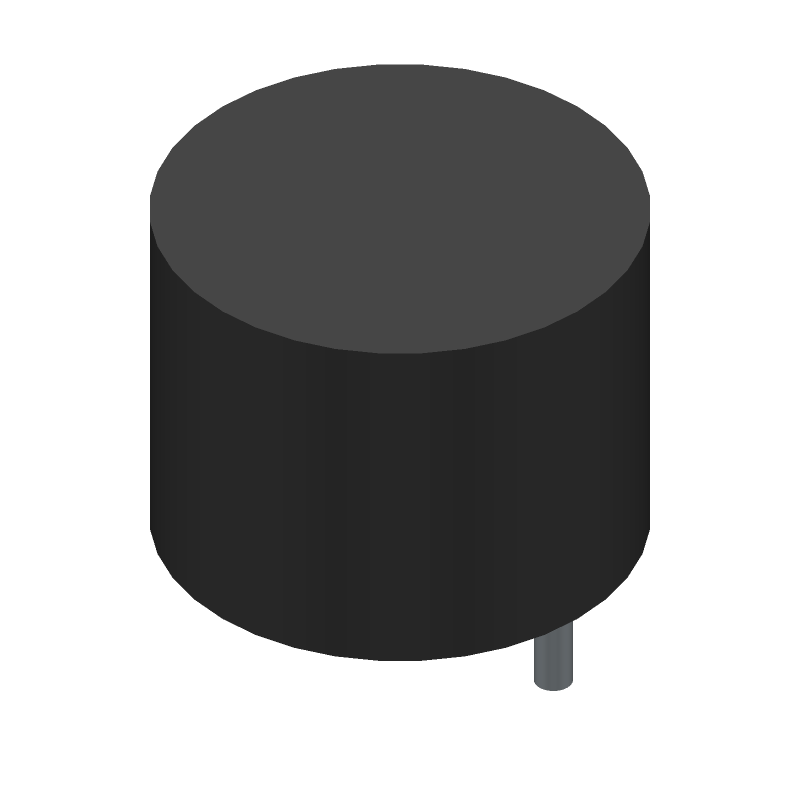

Through-hole fixed inductor featuring a ferrite drum core with 180µH inductance and 10% tolerance. Designed for power applications, it offers a maximum DC current rating of 9.7A and a low DC resistance of 72mΩ. This unshielded component has a radial lead style, a 28mm diameter, and operates within a temperature range of -25°C to 85°C.
PackageRadial
Current Rating5.5A
MountingThrough Hole
Inductance180uH
Quick Jump:
Technical Specifications
Abracon AIRD-03-181K technical specifications.
General
Package/Case
Radial
Core Material
Ferrite
Current Rating
5.5A
DC Resistance (DCR)
72mR
Diameter
28mm
Height
0.827inch
Inductance
180uH
Lead Pitch
22mm
Lead/Base Style
Radial
Length
21mm
Max DC Current
9.7A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
9.7A
Series
AIRD-03
Shielding
Unshielded
Termination
Radial
Test Frequency
1Hz
Tolerance
10%
Compliance
RoHS
Compliant
Datasheet
Abracon AIRD-03-181K Datasheet
Download the complete datasheet for Abracon AIRD-03-181K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

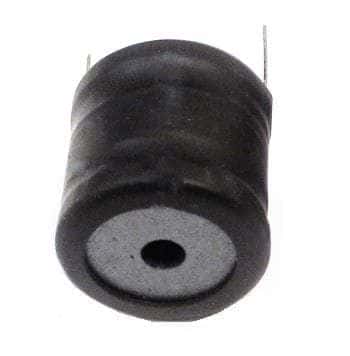

Product Images
