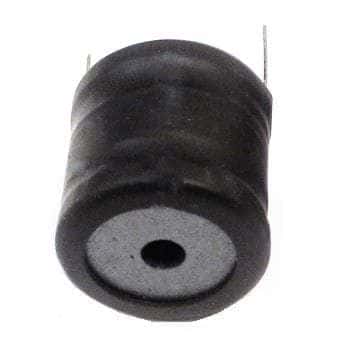

The AIRD-06-1R0M is a through-hole ferrite inductor with a 1uH inductance value and a 20% tolerance. It has a maximum DC current rating of 108A and operates within a temperature range of -25°C to 85°C. The inductor is packaged in bulk and is not radiation hardened. It is compliant with RoHS regulations and has a radial termination style.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Abracon AIRD-06-1R0M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Core Material | Ferrite |
| DC Resistance (DCR) | 3mR |
| Diameter | 21mm |
| Inductance | 1uH |
| Lead Pitch | 19mm |
| Lead/Base Style | Radial |
| Length | 21mm |
| Max DC Current | 108A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 108A |
| Series | AIRD-06 |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| RoHS | Compliant |
