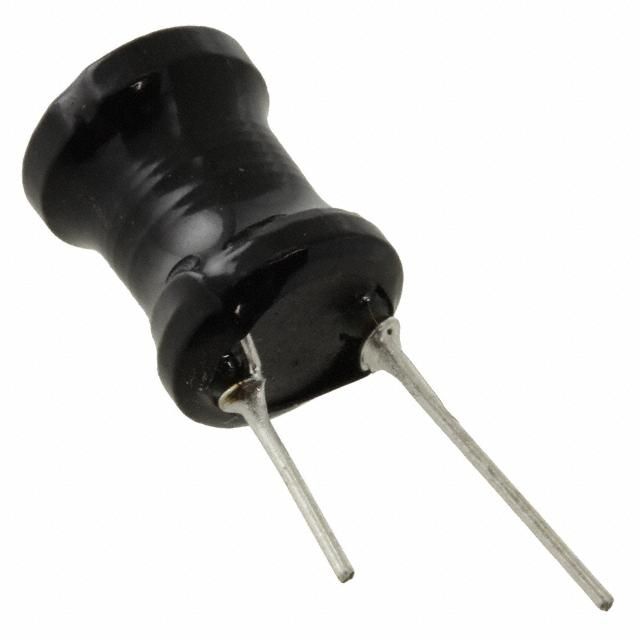

General purpose radial inductor with 1mH inductance and 10% tolerance. Features a ferrite core, 650mA current rating, and 1.2 Ohm DC resistance. Designed for through-hole mounting with a 7.37mm lead pitch and 0.81mm lead diameter. Operates from -40°C to 125°C, is RoHS compliant, and lead-free.
PackageRadial
Current Rating650mA
MountingThrough Hole
Inductance1mH
Quick Jump:
Technical Specifications
Abracon AIUR-06-102K technical specifications.
General
| Package/Case | Radial |
| Core Material | Ferrite |
| Current Rating | 650mA |
| DC Resistance (DCR) | 1.2R |
| Diameter | 12.7mm |
| Height | 18mm |
| Height - Seated (Max) | 0.71inch |
| Inductance | 1mH |
| Lead Diameter | 0.81mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.37mm |
| Lead/Base Style | Radial |
| Length | 18mm |
| Max DC Current | 880mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 880mA |
| Series | AIUR-06 |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 10% |
Compliance
| RoHS | Compliant |
