Surface mount crystal oscillator providing a stable 16MHz HCMOS output. Features ±50ppm frequency stability over an operating temperature range of -40°C to +85°C. Designed for a 15pF load capacitance with a supply voltage range of 2.97V to 3.66V and a maximum supply current of 5mA. RoHS compliant and available in cut tape packaging.
Frequency16MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASA-16.000MHZ-L-T technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 16MHz |
| Frequency Stability | 50ppm |
| Load Capacitance | 15pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5mA |
| Max Supply Voltage | 3.66V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | ASA |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ASA-16.000MHZ-L-T Datasheet
Download the complete datasheet for Abracon ASA-16.000MHZ-L-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

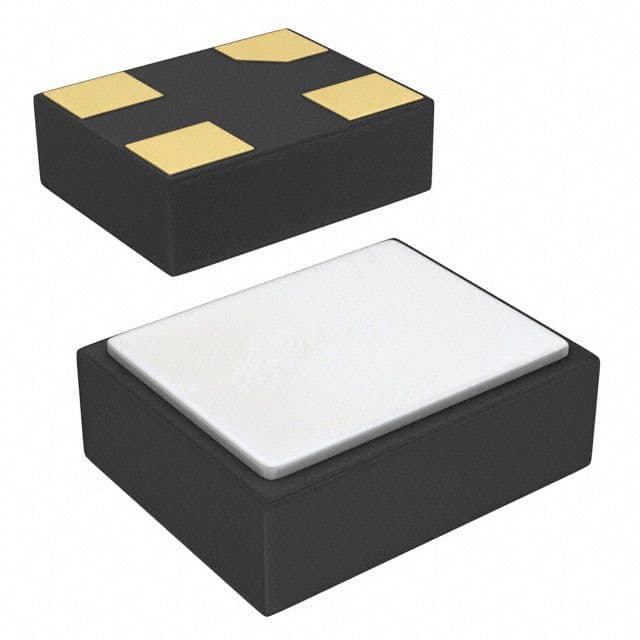

Product Images
