PackageSMD
MountingSurface Mount
Quick Jump:
Technical Specifications

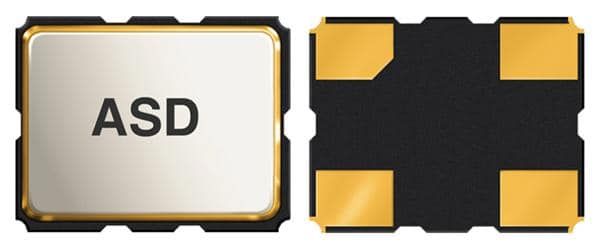

Abracon ASD1-25.000MHz-ECT technical specifications.
General
Basic Package Type
Non-Lead-Frame SMT
Package Family Name
SMD
Package/Case
SMD
Package Description
Surface Mount Device
Pin Count
4
PCB
4
Package Length (mm)
2.5
Package Width (mm)
2
Package Height (mm)
1(Max)
Seated Plane Height (mm)
1(Max)
Mounting
Surface Mount
Type
Crystal Oscillator
Standard Frequency
25MHz
Frequency Stability
±50ppm
Load Capacitance
15pF
Max Symmetry
60%
Min Operating Supply Voltage
2.85V
Max Operating Supply Voltage
3.15V
Min Operating Temperature
-20°C
Max Operating Temperature
70°C
Compliance
Cage Code
3KDW2
EU RoHS
Yes
HTS Code
8541600060
Schedule B
8541600060
ECCN
EAR99
Automotive
No
AEC Qualified
No
PPAP
No
Radiation Hardening
No
RoHS Versions
2011/65/EU, 2015/863
Datasheet
Abracon ASD1-25.000MHz-ECT Datasheet
Download the complete datasheet for Abracon ASD1-25.000MHz-ECT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
