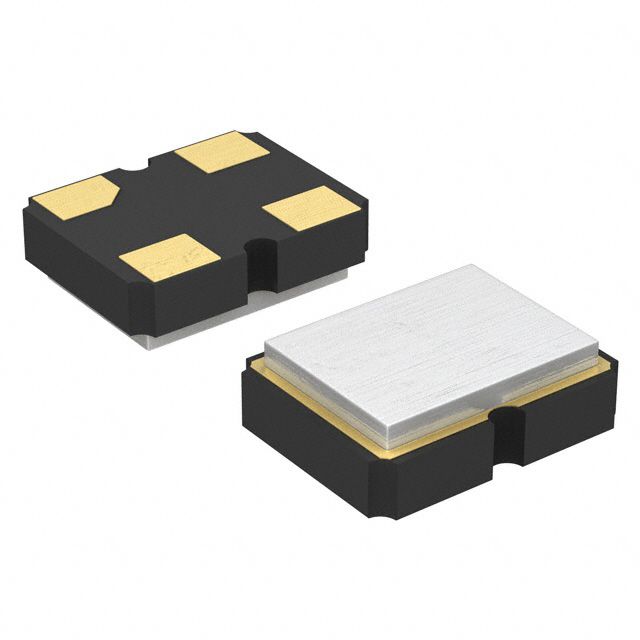

The ASE2-60.000MHZ-ET is a surface mount oscillator with a frequency of 60MHz and a frequency stability of 100ppm. It operates over a temperature range of -20°C to 70°C and has a maximum supply current of 20mA. The oscillator is packaged in a tape and reel format and is lead-free. It has a load capacitance of 15pF and a width of 0.098inch, with a height of 0.047inch and a length of 0.126inch.
Frequency60MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASE2-60.000MHZ-ET technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 60MHz |
| Frequency Stability | 100ppm |
| Height | 0.047inch |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Load Capacitance | 15pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 20mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Series | ASE2 |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
