MEMS oscillator operating at 100MHz with ±25ppm frequency stability. Features LVDS output and a 52% duty cycle. Supports 2.5V or 3.3V operating supply voltage and requires 35mA max supply current. Packaged in a 6-pin QFN SMD, this surface mount component is RoHS compliant and lead-free.
Frequency100MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASEMPLV-100.000MHZ-LR-T technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 100MHz |
| Frequency Stability | 25ppm |
| Lead Free | Lead Free |
| Load Capacitance | 2pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 35mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ASEMP, Pure Silicon™ |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ASEMPLV-100.000MHZ-LR-T Datasheet
Download the complete datasheet for Abracon ASEMPLV-100.000MHZ-LR-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

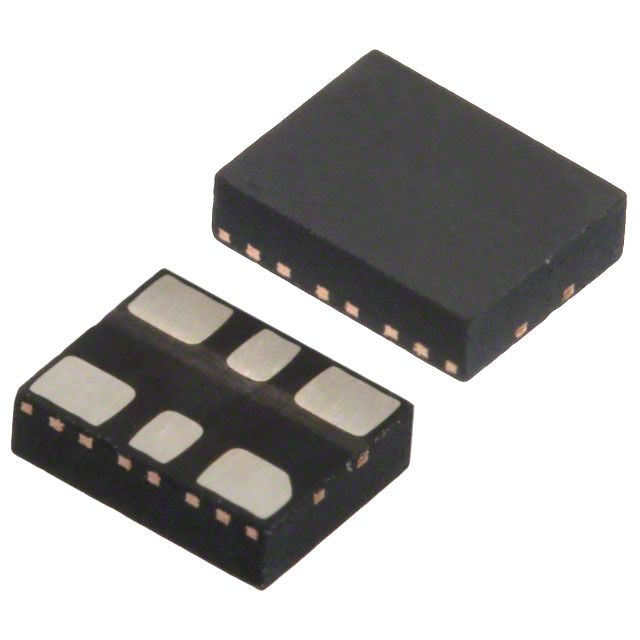

Product Images
