25MHz HCMOS/TTL crystal oscillator with ±50ppm frequency stability and 15pF load capacitance. Features a 3.3V operating supply voltage, 15mA maximum supply current, and a 60% duty cycle. Encased in a 4-pin SMD package, this surface-mount device operates from -20°C to 70°C and is RoHS compliant and lead-free.
Frequency25MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASFL1-25.000MHZ-EC-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 3.2mm |
| Frequency | 25MHz |
| Frequency Stability | 50ppm |
| Lead Free | Lead Free |
| Length | 5mm |
| Load Capacitance | 15pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 15mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Operating Frequency | 25 MHz |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ASFL1 |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ASFL1-25.000MHZ-EC-T Datasheet
Download the complete datasheet for Abracon ASFL1-25.000MHZ-EC-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

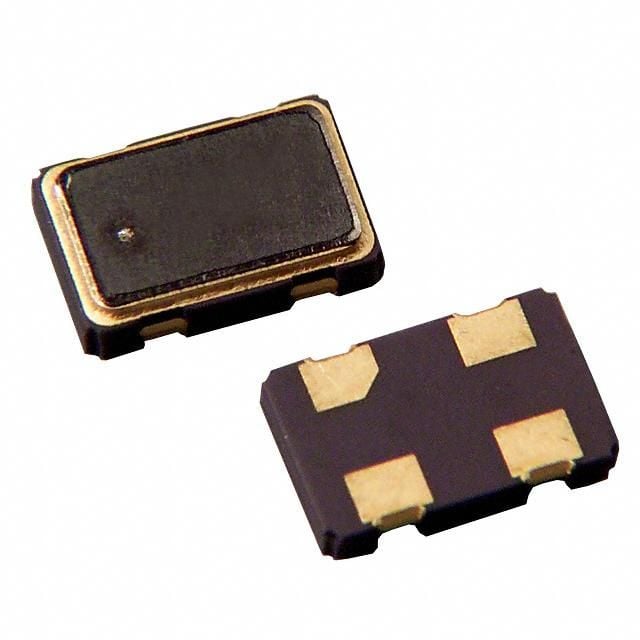

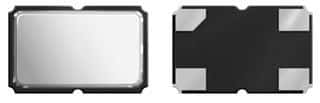

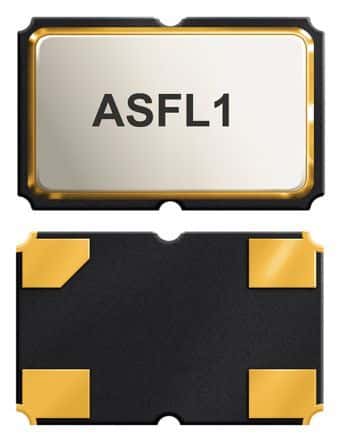

Product Images
