MEMS Oscillator, 100MHz frequency, HCSL output, 25ppm frequency stability, and 2pF load capacitance. Features a 3.6V operating supply voltage and a maximum supply current of 60mA. Encased in an SMD/SMT package for surface mounting, operating across a -40°C to 85°C temperature range. Packaged on tape and reel, this component is lead-free.
Sign in to ask questions about the Abracon ASFLMPHC-100.000MHZ-LR-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

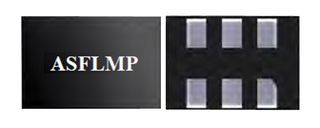

Abracon ASFLMPHC-100.000MHZ-LR-T technical specifications.
| Package/Case | SMD/SMT |
| Frequency | 100MHz |
| Frequency Stability | 25ppm |
| Lead Free | Lead Free |
| Load Capacitance | 2pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 60mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.6V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | ASFLMP, Pure Silicon™ |
| Termination | SMD/SMT |
| RoHS | Compliant |
Download the complete datasheet for Abracon ASFLMPHC-100.000MHZ-LR-T to view detailed technical specifications.
