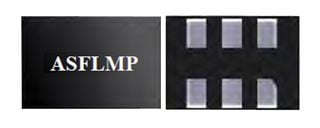

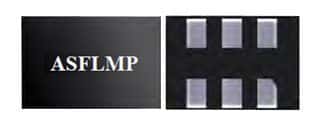

Surface mount crystal oscillator providing a nominal 100MHz frequency with LVDS output format. Features include a 25ppm frequency stability, 2pF load capacitance, and an operating supply voltage of 3.6V. This component operates within a temperature range of -40°C to 85°C and has a maximum supply current of 40mA. Packaged in tape and reel, it is lead-free and RoHS compliant.
Frequency100MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASFLMPLV-100.000MHZ-LR-T technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 100MHz |
| Frequency Stability | 25ppm |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Load Capacitance | 2pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 40mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.6V |
| Output Format | LVDS |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ASFLMP, Pure Silicon™ |
| Termination | SMD/SMT |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ASFLMPLV-100.000MHZ-LR-T Datasheet
Download the complete datasheet for Abracon ASFLMPLV-100.000MHZ-LR-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
