Abracon
ASPI-0315FS-2R2M-T2
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Ferrite 2A 0.058Ohm DCR 1212 T/R
Current Rating1.45A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Abracon ASPI-0315FS-2R2M-T2 technical specifications.
General
Core Material
Ferrite
Current Rating
1.45A
DC Resistance (DCR)
60mR
Height
0.059inch
Inductance
2.2uH
Lead Free
Lead Free
Length
0.118inch
Max Operating Temperature
120°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
RoHS Compliant
Yes
Saturation Current
1.45A
Series
ASPI-0315FS
Shielding
Shielded
Test Frequency
100kHz
Tolerance
20%
Width
0.118inch
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-0315FS-2R2M-T2 Datasheet
Download the complete datasheet for Abracon ASPI-0315FS-2R2M-T2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

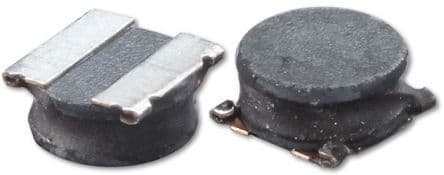

Product Images
