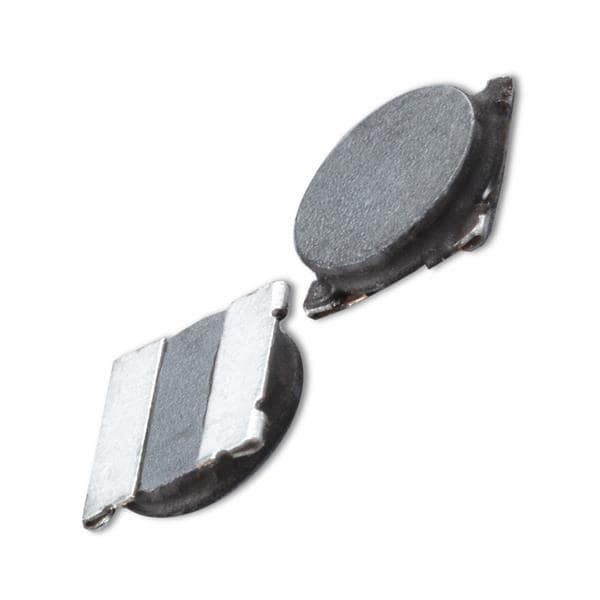

The ASPI-0615FS-470M-T2 is a shielded ferrite inductor with a core material of ferrite and a DC resistance of 370 milliohms. It has an inductance of 47 microhenries and a maximum DC current rating of 770 milliamperes. The inductor is designed for surface mount applications and has a maximum operating temperature of 120 degrees Celsius. It is available in a nonstandard package and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Abracon ASPI-0615FS-470M-T2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 370mR |
| Height | 2mm |
| Inductance | 47uH |
| Length | 6mm |
| Max DC Current | 770mA |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 800mA |
| Series | ASPI-0615FS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
| RoHS | Compliant |
