PackageNonstandard
MountingSurface Mount
Inductance1uH
Quick Jump:
Technical Specifications

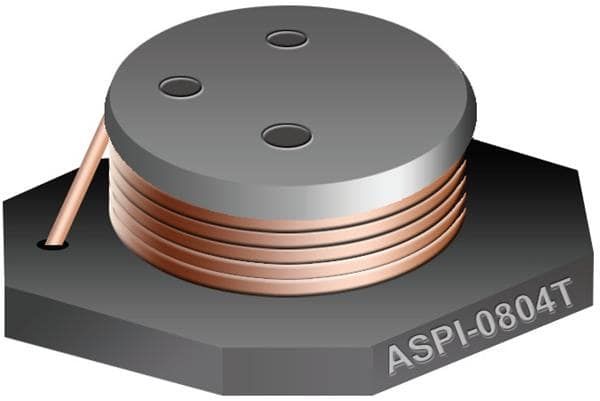

Abracon ASPI-0804T-1R0M-T technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
9mR
Depth
9.5mm
Height
5.2mm
Inductance
1uH
Length
12.9mm
Max DC Current
6.8A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
700
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
ASPI-0804T
Shielding
Unshielded
Test Frequency
100kHz
Tolerance
20%
Width
9.4mm
Compliance
RoHS
Compliant
Datasheet
Abracon ASPI-0804T-1R0M-T Datasheet
Download the complete datasheet for Abracon ASPI-0804T-1R0M-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
