Technical Specifications
Abracon ASPI-6045S-910M-T technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 359mR |
| Height | 4.5mm |
| Inductance | 91uH |
| Length | 6mm |
| Max DC Current | 850mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 1A |
| Self Resonant Frequency | 4.9MHz |
| Series | ASPI-6045S |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ASPI-6045S-910M-T Datasheet
Download the complete datasheet for Abracon ASPI-6045S-910M-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

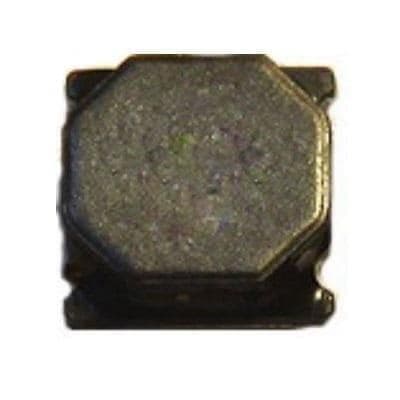

Product Images
