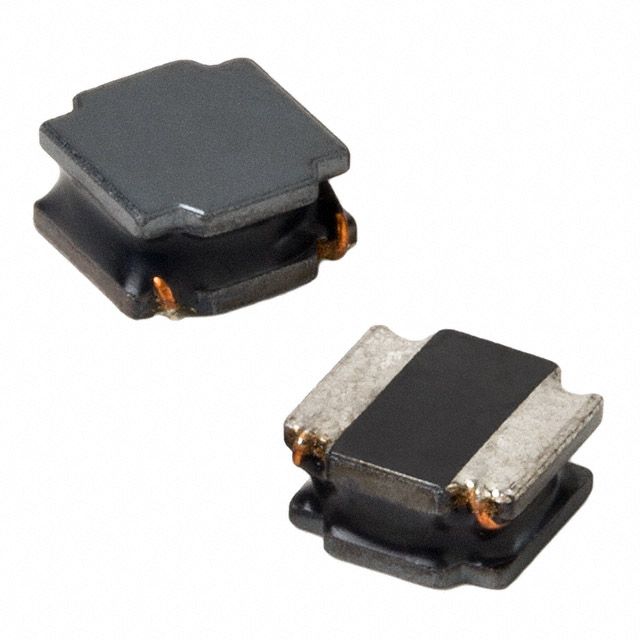

The ASPI-8040S-100M-T is a shielded ferrite inductor with a core material of ferrite and a nonstandard package case. It has a DC resistance of 29 milliohms and an inductance of 10 microhenries. The inductor is designed for surface mount applications and is available on tape and reel. It operates over a temperature range of -40°C to 125°C and is compliant with lead-free standards. The inductor has a self-resonant frequency of 15 MHz and a saturation current of 3.6 amperes.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Abracon ASPI-8040S-100M-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Abracon ASPI-8040S-100M-T technical specifications.
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 29mR |
| Height | 4.2mm |
| Inductance | 10uH |
| Lead Free | Lead Free |
| Length | 8mm |
| Max DC Current | 3.3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 3.6A |
| Self Resonant Frequency | 15MHz |
| Series | ASPI-8040S |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 8mm |
| RoHS | Compliant |
