Frequency1.8432MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications

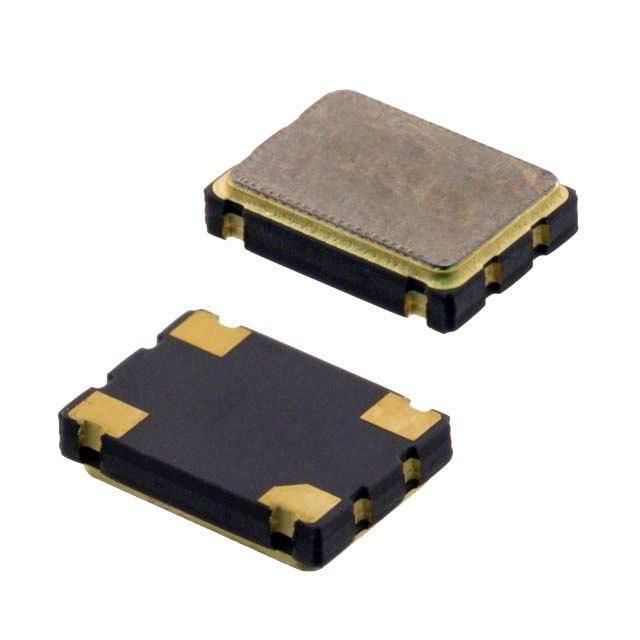

Abracon ASV-1.8432MHZ-E-T technical specifications.
General
Package/Case
SMD/SMT
Depth
5.08mm
Frequency
1.8432MHz
Frequency Stability
100ppm
Height
0.071inch
Length
7mm
Load Capacitance
15pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Current
10mA
Max Supply Voltage
3.63V
Min Supply Voltage
2.97V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
ASV
Width
0.2inch
Compliance
RoHS
Compliant
Datasheet
Abracon ASV-1.8432MHZ-E-T Datasheet
Download the complete datasheet for Abracon ASV-1.8432MHZ-E-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
