8MHz HCMOS/TTL oscillator with 20ppm frequency stability and 15pF load capacitance. Features a 3.3V operating supply voltage, 10mA maximum supply current, and a temperature range of -20°C to 70°C. Surface mountable in a 4-pin CSMD package, supplied on tape and reel. Lead-free and RoHS compliant.
Frequency8MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ASV-8.000MHZ-EJ-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 5.08mm |
| Frequency | 8MHz |
| Frequency Stability | 20ppm |
| Lead Free | Lead Free |
| Length | 7mm |
| Load Capacitance | 15pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 10mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Operating Frequency | 8 MHz |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ASV |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ASV-8.000MHZ-EJ-T Datasheet
Download the complete datasheet for Abracon ASV-8.000MHZ-EJ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

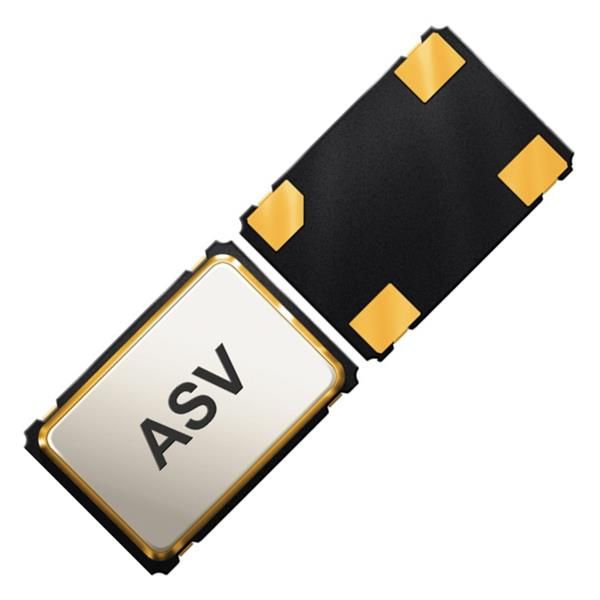

Product Images
