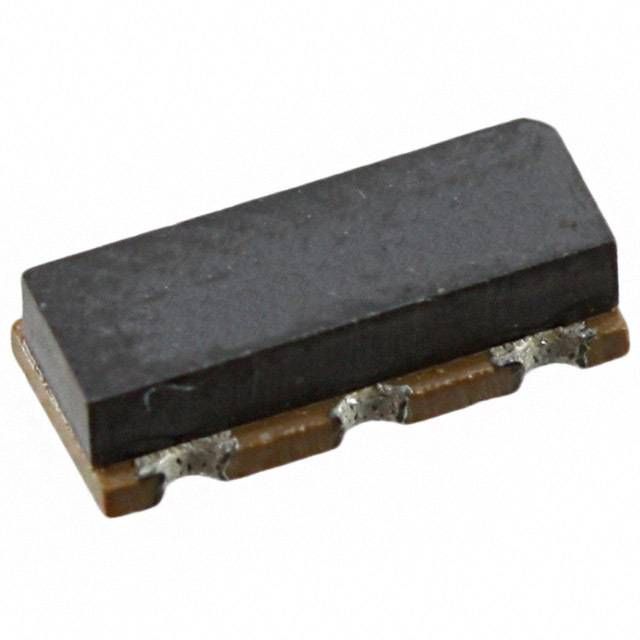

The AWSCR-3.58MGD-T is a 22pF SMD/SMT crystal resonator with a frequency of 3.58MHz and a frequency stability of 0.3%. It operates within a temperature range of -25°C to 85°C and is powered by a 6V supply voltage. The resonator has an impedance of 30R and an equivalent series resistance of 50R. It is RoHS compliant and exempt from lead-free requirements.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Abracon AWSCR-3.58MGD-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 22pF |
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 3.58MHz |
| Frequency Stability | 0.3% |
| Frequency Tolerance | 0.5% |
| Impedance | 30R |
| Lead Free | Exempt |
| Load Capacitance | 15pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 6V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | AWSCR-MGD |
| Termination | SMD/SMT |
| Tolerance | 0.5% |
| RoHS | Compliant |
