AC Adapter {power supply for AV, ITE or ICT with C14 appliance inlet supply connection}
Quick Jump:
Technical Specifications

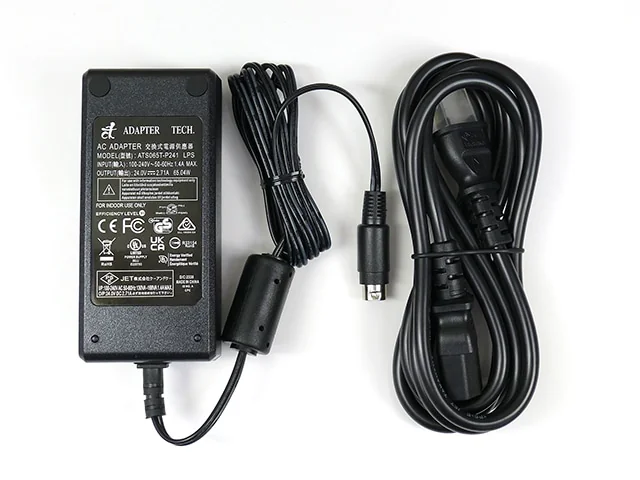

Adapter Technology ATS065T-P241 technical specifications.
General
Warranty
1Year
Style
Desktop Adapter
Type
Switching
Number of Outputs
1
Input/Output Type
AC/DC
Output Type
Fixed
Output Voltage
24V
Maximum Output Current
2.71A
Maximum Output Power
65W
Input Voltage
100 to 240V
Maximum Input Current
1.4A
Minimum Isolation Voltage
3000VAC
Min Operating Temperature
0°C
Max Operating Temperature
40°C
Load Regulation
5%(Typ)
Input Connector Type
IEC 60320-C6/IEC 60320-C14
Output Connector Type
Cylindrical Female
Adapter Color
Black
Ripple & Noise
2%(Max)
Typical Hold-Up Time
10ms
Power Indicator
No
Protection
Internal AC Fuses|Inrush Limiting
Compliance
RoHS
Yes
RoHS Version
2002/95/EC
Datasheet
Adapter Technology ATS065T-P241 Datasheet
Download the complete datasheet for Adapter Technology ATS065T-P241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
