8Mb NOR Flash memory, 8-bit data bus width, 85MHz maximum frequency, and SPI serial interface. Features a 2.7V to 3.6V operating supply voltage range and a -40°C to 85°C operating temperature range. Surface mountable in an SOIC-8 package, this lead-free and RoHS compliant component is supplied on tape and reel.
Frequency85MHz
PackageSOIC
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Adesto Technologies AT25DF081A-SSH-T technical specifications.
General
| Address Bus Width | 1b |
| Package/Case | SOIC |
| Data Bus Width | 8b |
| Density | 8388608b |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 85MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256B |
| Memory Type | NOR, , FLASH |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 20mA |
| Sync/Async | Synchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Adesto Technologies AT25DF081A-SSH-T Datasheet
Download the complete datasheet for Adesto Technologies AT25DF081A-SSH-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

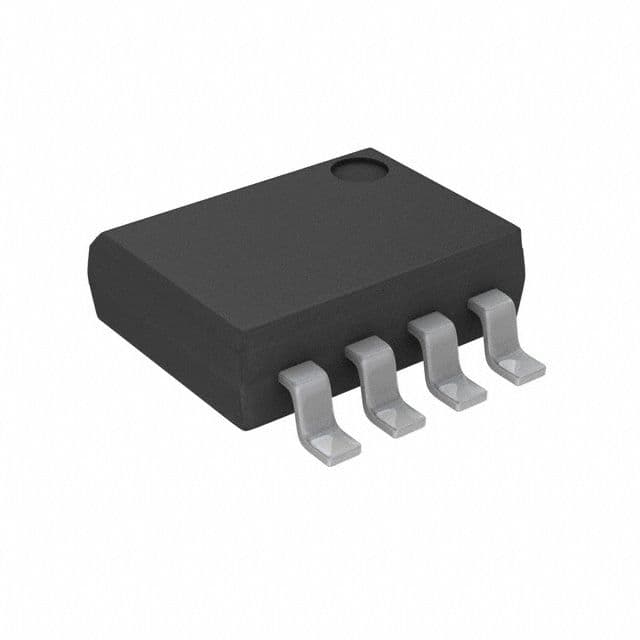

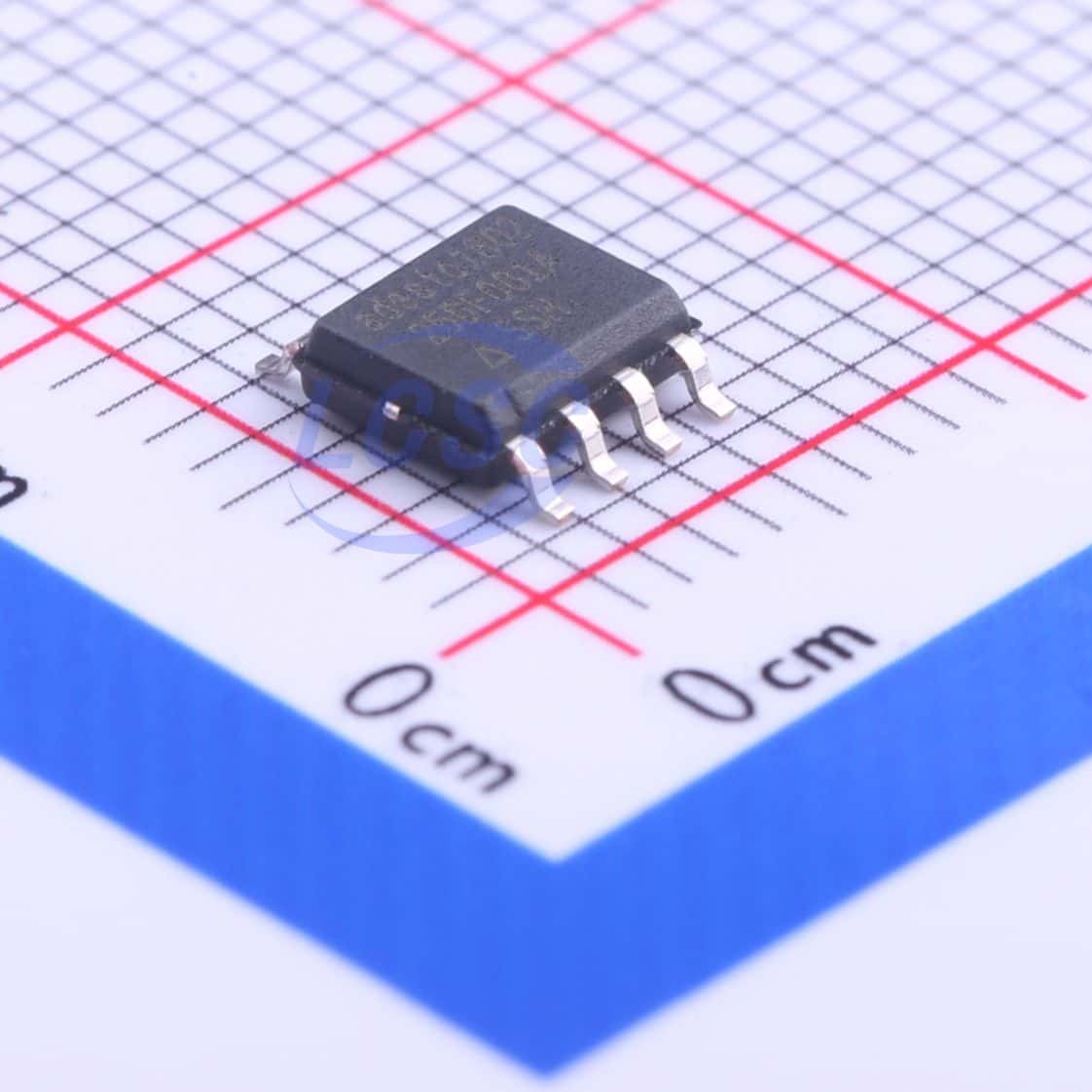

Product Images
