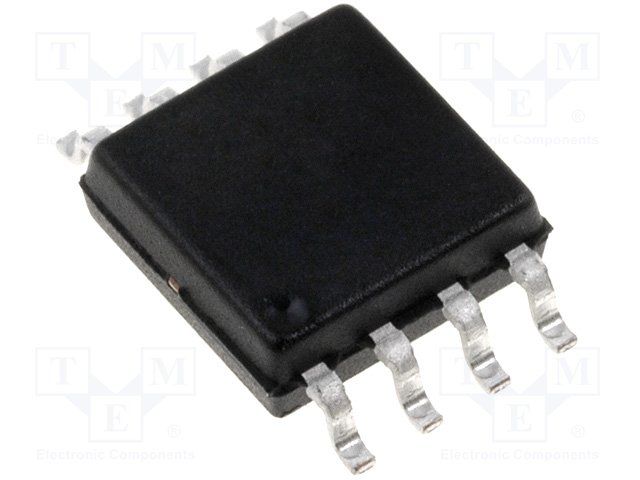

64Mb Serial SPI Flash memory, 8-bit data bus width, 24-bit address bus. Features 5ns maximum access time and an 85MHz maximum frequency. Operates from a 2.7V to 3.6V supply voltage with a typical 3.3V operating voltage. Packaged in a lead-free SOIC surface mount case with gold contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Adesto Technologies AT25DF641A-SH-B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time-Max | 5ns |
| Address Bus Width | 24b |
| Package/Case | SOIC |
| Contact Plating | Gold |
| Data Bus Width | 8b |
| Density | 64Mb |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 85MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 38mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 256B |
| Memory Type | FLASH, , NOR |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Page Size | 256B |
| Programming Voltage | 3.6V |
| RoHS Compliant | Yes |
| Series | AT25DF |
| Supply Current | 19mA |
| Sync/Async | Synchronous |
| Word Size | 8b |
| RoHS | Compliant |
