The AT45DB642D-CNU is a 64Mb non-volatile flash memory device with a maximum operating frequency of 66MHz and a supply voltage of 3.3V. It is designed for surface mount applications and operates within a temperature range of -40°C to 85°C. The device has a maximum supply current of 15mA and is compliant with RoHS regulations. It is available in a VSON package type.
Frequency66MHz
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Adesto Technologies AT45DB642D-CNU technical specifications.
General
| Access Time-Max | 6ns |
| Density | 64Mb |
| Frequency | 66MHz |
| Interface | SPI, Serial, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64Mb |
| Memory Type | Non-Volatile, , FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
| Sync/Async | Synchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Adesto Technologies AT45DB642D-CNU Datasheet
Download the complete datasheet for Adesto Technologies AT45DB642D-CNU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

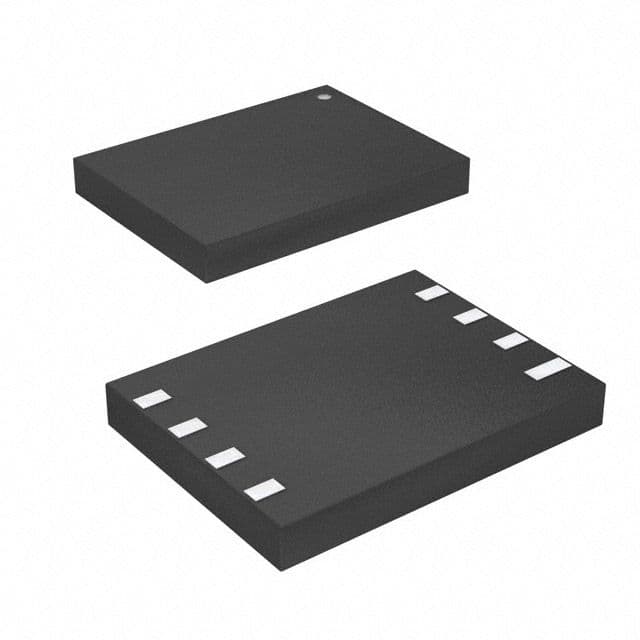

Product Images
