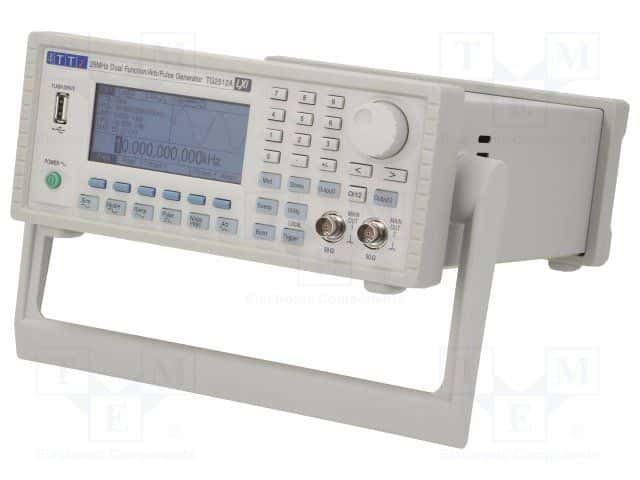

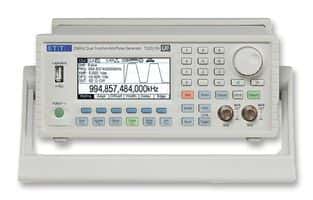

The TG2512A is a 2-channel arbitrary DDS signal generator with a maximum operating temperature of 40°C and a minimum operating temperature of 5°C. It features an input impedance of 5kΩ and operates at a maximum frequency of 25MHz. The device measures 295mm in length, 250mm in width, and 97mm in height, with a weight of 6lb. The TG2512A is designed for use in test equipment applications and is suitable for use in signal and function generator systems.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aim-Tti TG2512A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 25MHz |
| Display Type | LCD |
| Height | 97mm |
| Input Impedance | 5kR |
| Interface | USB |
| Length | 295mm |
| Max Frequency | 25MHz |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 5°C |
| Number of Channels | 2 |
| Operating Supply Voltage | 240V |
| Reach SVHC Compliant | Unknown |
| Weight | 6lb |
| Width | 250mm |
| RoHS | Compliant |
