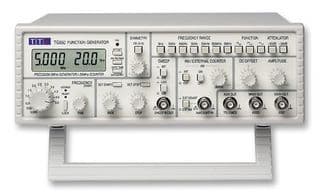

This arbitrary and DDS signal and function generator has a bandwidth of 5MHz and operates within a supply voltage range of 115V to 230V. It produces an output voltage of 20V and has a single channel. The device has a height of 88mm, length of 235mm, and width of 260mm, with a weight of 1.9kg. It is designed to operate within a temperature range of 5°C to 40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aim-Tti TG550 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 5MHz |
| Height | 88mm |
| Input Impedance | 1MR |
| Length | 235mm |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 5°C |
| Max Supply Voltage | 230V |
| Min Supply Voltage | 115V |
| Number of Channels | 1 |
| Output Voltage | 20V |
| Reach SVHC Compliant | No |
| Weight | 1.9kg |
| Width | 260mm |
| RoHS | Compliant |
