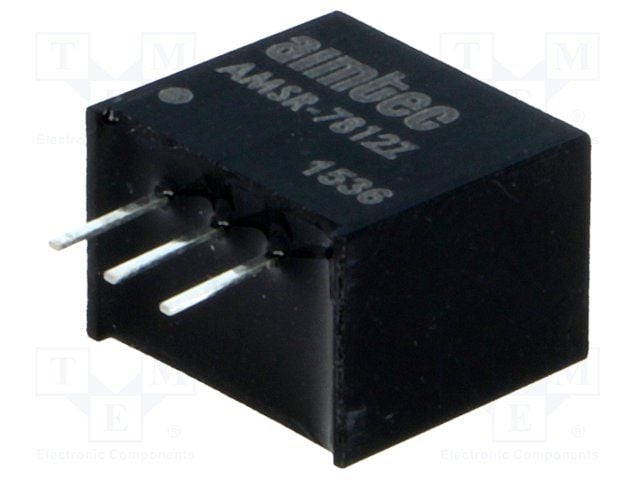

The AMSR-7812Z DC/DC converter from Aimtec features a high efficiency of 97% and a maximum output current of 500mA. It operates within a temperature range of -40°C to 85°C and is packaged in a SIP format for PCB mounting. The device is RoHS compliant and has a maximum output power of 6W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Aimtec AMSR-7812Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Aimtec AMSR-7812Z technical specifications.
| Package/Case | SIP |
| Efficiency | 97% |
| Height | 0.4inch |
| Leakage Current | 0pA |
| Length | 0.46inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Mount | PCB |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Power | 6W |
| Output Voltage | 12V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 1.8g |
| Width | 0.29inch |
| RoHS | Compliant |
