Frequency11.059MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Aker C7S-11.0592-12-3030-X technical specifications.
General
Package/Case
SMD/SMT
Frequency
11.059MHz
Frequency Stability
30ppm
Frequency Tolerance
30ppm
Height
1.1mm
Length
7mm
Load Capacitance
12pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Cut Tape
Reach SVHC Compliant
No
Series Resistance
60R
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Aker C7S-11.0592-12-3030-X Datasheet
Download the complete datasheet for Aker C7S-11.0592-12-3030-X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

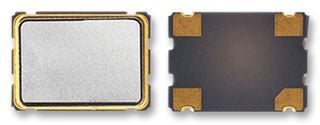

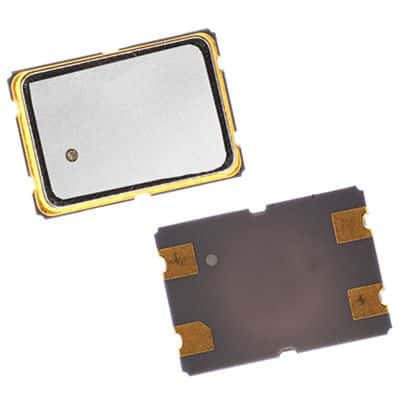

Product Images
