Alfatronix
PV12I
ALFATRONIX PV12I Non Isolated POL DC/DC Converter, PowerVerter, Fixed, Chassis, 1 Output, 144 W, 12 V
PackageModule
Quick Jump:
Technical Specifications
Alfatronix PV12I technical specifications.
General
Package/Case
Module
Current - Output 1
12A
Depth
166mm
Efficiency
85%
Height
50mm
Isolation Voltage
400V
Max Input Voltage (DC)
32V
Min Input Voltage (DC)
17V
Max Input Voltage
32V
Min Input Voltage
17V
Max Output Current
12A
Max Output Power
144W
Nominal Output Voltage
12V
Number of Outputs
1
Reach SVHC Compliant
No
RoHS Compliant
No
Voltage - Output 1
12V
Width
87mm
Compliance
RoHS
Not Compliant
Datasheet
Alfatronix PV12I Datasheet
Download the complete datasheet for Alfatronix PV12I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

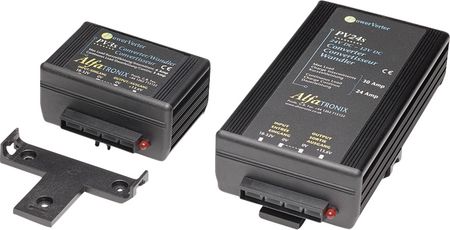

Product Images
