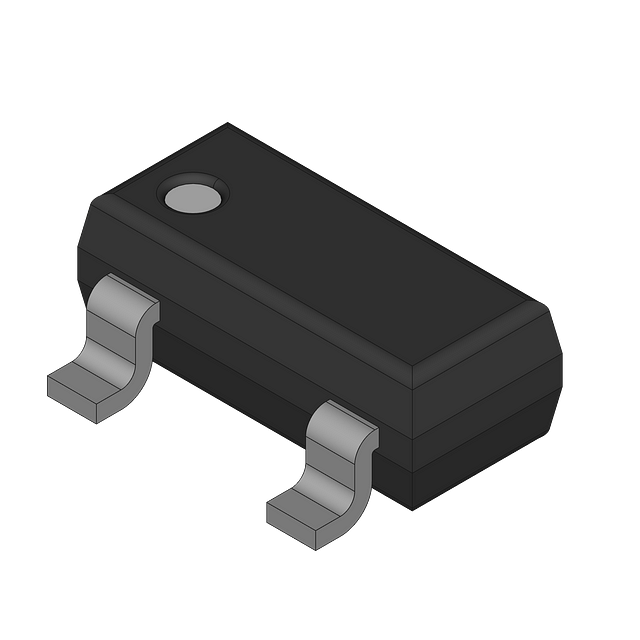

Unipolar Hall Effect Switch IC, BICMOS technology, operating from 3.8V to 24V supply voltage. Features a maximum output current of 25mA and a maximum supply current of 7.5mA. Packaged in a 3-pin SOT-23 (PDSO3) surface mount package, suitable for tape and reel packaging. Operates across a temperature range of -40°C to 150°C, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems A1101LLHLT-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Allegro Microsystems A1101LLHLT-T technical specifications.
| Package/Case | SOT-23 |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Current | 7.5mA |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3.8V |
| Mount | Surface Mount |
| Operating Supply Current | 7.5mA |
| Output Current | 25mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Type | Unipolar Switch |
| RoHS | Compliant |
