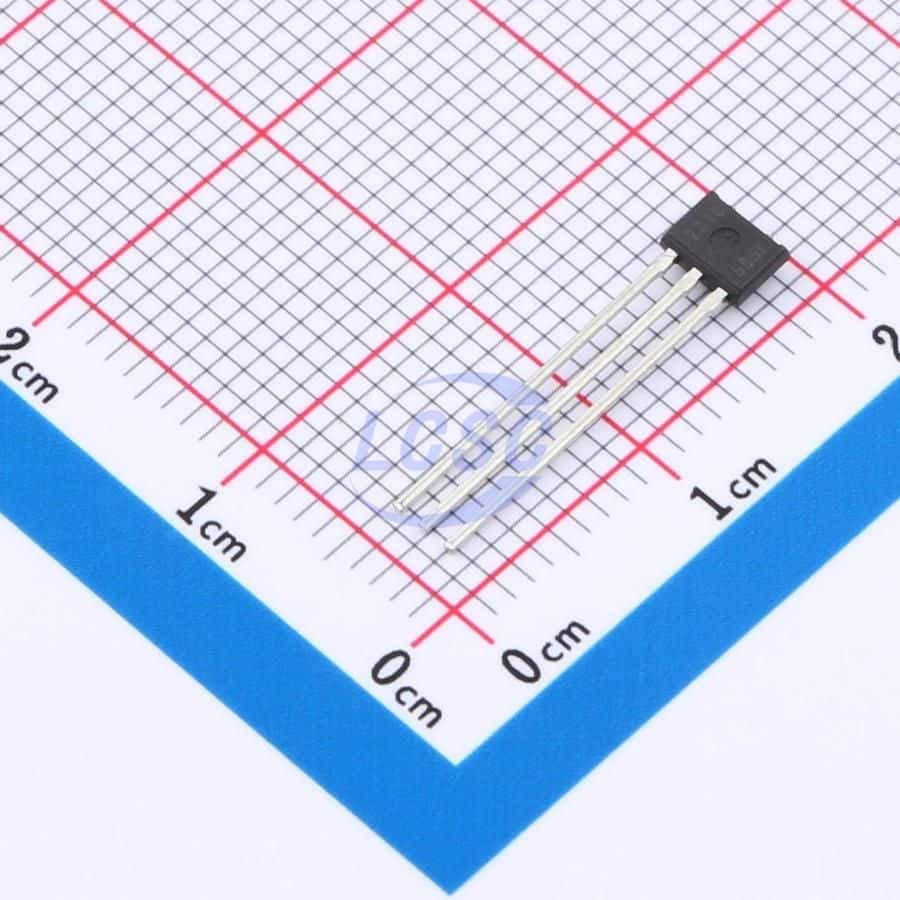

Analog circuit IC featuring a BICMOS process and a single latch function. Designed for through-hole mounting in a SIP package, this bipolar switch operates with a supply voltage range of 3.8V to 24V. It offers a maximum output current of 25mA and a maximum supply current of 7.5mA, with an output voltage capability of 30V. Operating temperature range spans from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems A1203EUA-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Allegro Microsystems A1203EUA-T technical specifications.
| Package/Case | SIP |
| Lead Free | Lead Free |
| Logic Function | Latch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Current | 7.5mA |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3.8V |
| Mount | Through Hole |
| Operating Supply Current | 7.5mA |
| Output Current | 25mA |
| Output Voltage | 30V |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Type | Bipolar Switch |
| RoHS | Not CompliantNo |
