Linear Hall Effect Sensor IC, latching omnipolar type, offering a magnetic sensitivity range of -4mT to 4mT. Features a 30-60mA operating supply current, 3-24V supply voltage range, and 25mA max output current. Operates across a -40°C to 150°C temperature range with an 800kHz bandwidth. Packaged in a surface-mount SOT-23W, 3-pin configuration, supplied on tape and reel. RoHS compliant and AEC-Q100 qualified for automotive applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems A1220LLHLT-T technical specifications.
General
Bandwidth
800kHz
Logic Function
Latch
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
25mA
Max Supply Current
4mA
Max Supply Voltage
24V
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Current
4mA
Output Current
25mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Allegro Microsystems A1220LLHLT-T Datasheet
Download the complete datasheet for Allegro Microsystems A1220LLHLT-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

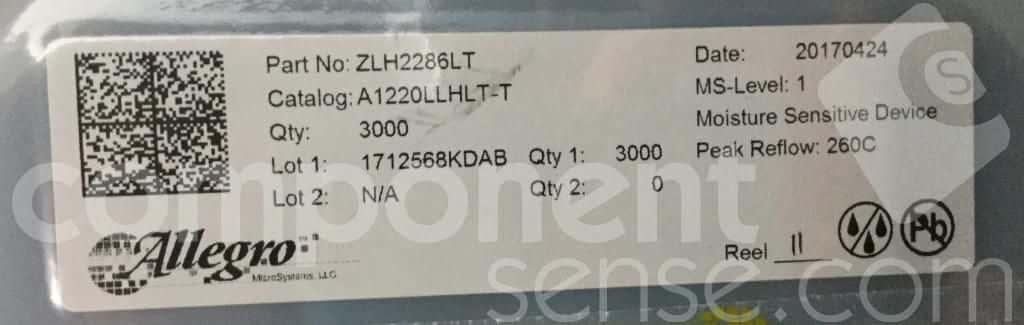

Product Images
