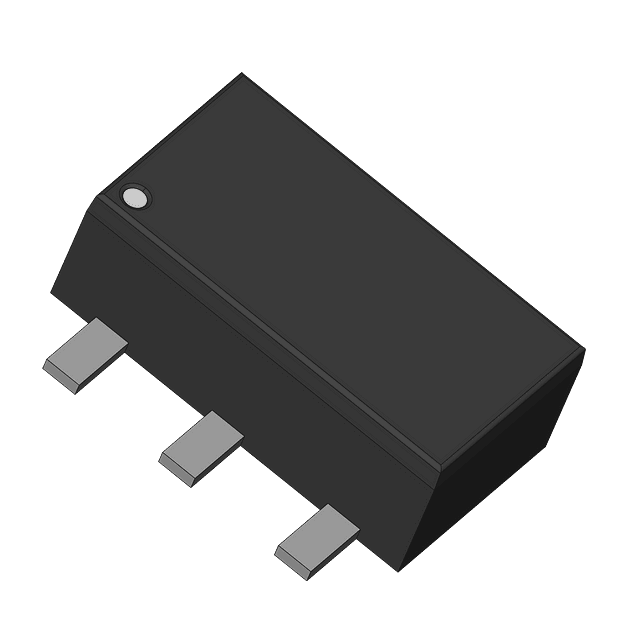

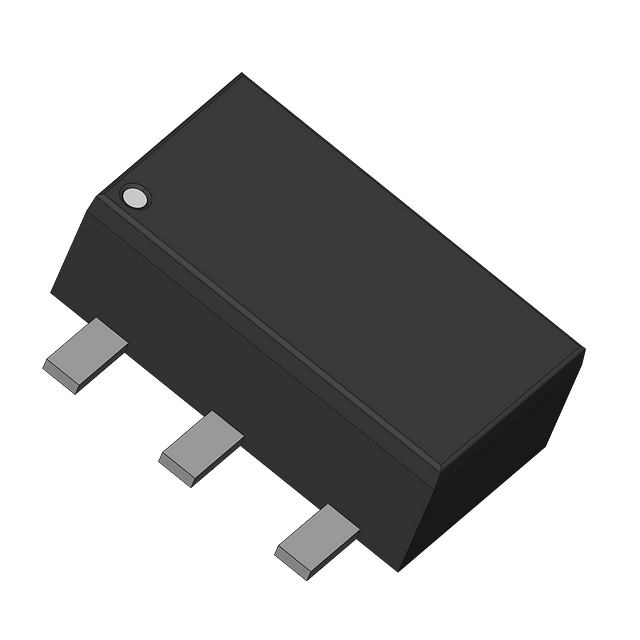

The A1225LLTTR-T is a latch IC from Allegro Microsystems, packaged in the TO-243AA surface mount package. It operates over a temperature range of -40°C to 150°C and can supply up to 25mA of output current. The device is RoHS compliant and available in tape and reel packaging. It can be powered with a supply voltage between 3.8V and 24V, with an operating supply current of 6mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems A1225LLTTR-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Allegro Microsystems A1225LLTTR-T technical specifications.
| Package/Case | TO-243AA |
| Logic Function | Latch |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Current | 6mA |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3.8V |
| Mount | Surface Mount |
| Operating Supply Current | 6mA |
| Output Current | 25mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Allegro Microsystems A1225LLTTR-T to view detailed technical specifications.
