Linear Hall Effect Sensor, SOT-23 package, featuring analog voltage output. Operates from 4.5V to 5.5V supply voltage with a typical 5V operating voltage and 9mA supply current. Offers a 10mA maximum output current and a 17kHz bandwidth. Designed for surface mount applications with dimensions of 2.98mm length, 1.91mm width, and 0.95mm height. Suitable for operation between -40°C and 150°C, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems A1326LLHLT-T technical specifications.
General
Bandwidth
17kHz
Package/Case
SOT-23
Height
0.95mm
Length
2.98mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Supply Current
9mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Current
9mA
Operating Supply Voltage
5V
Output Current
10mA
Output Type
Analog Voltage
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Width
1.91mm
Compliance
RoHS
Compliant
Datasheet
Allegro Microsystems A1326LLHLT-T Datasheet
Download the complete datasheet for Allegro Microsystems A1326LLHLT-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

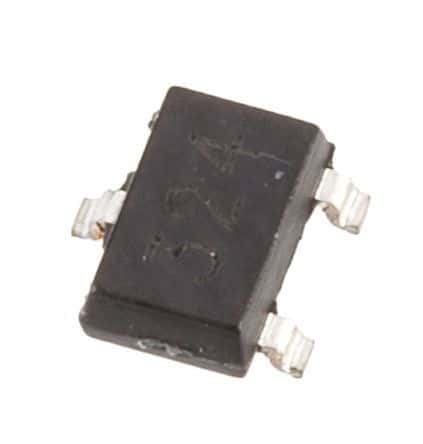

Product Images
