8-channel bipolar peripheral driver IC with 500mA max output current per channel. Features 50V collector-emitter voltage and 1.8V collector-emitter saturation voltage. Operates from a 2.4V to 50V supply voltage range. Packaged in a 20-pin SOIC (PDSO20) surface-mount package, measuring 12.8mm x 7.5mm x 2.35mm. RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
PolarityNPN, PNP
Quick Jump:
Technical Specifications
Allegro Microsystems A2982SLWTR-T technical specifications.
General
| Package/Case | SOIC |
| Collector Emitter Saturation Voltage | 1.8V |
| Collector Emitter Voltage (VCEO) | 50V |
| Height | 2.35mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 12.8mm |
| Max Collector Current | 500mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 500mA |
| Max Supply Voltage | 50V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Elements | 8 |
| Number of Outputs | 8 |
| Output Configuration | High Side |
| Output Current | 500mA |
| Output Voltage | 50V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN, PNP |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Allegro Microsystems A2982SLWTR-T Datasheet
Download the complete datasheet for Allegro Microsystems A2982SLWTR-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

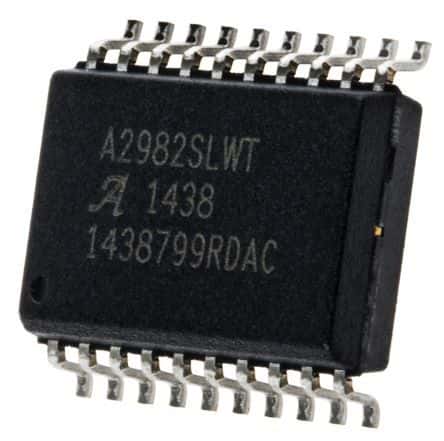

Product Images
