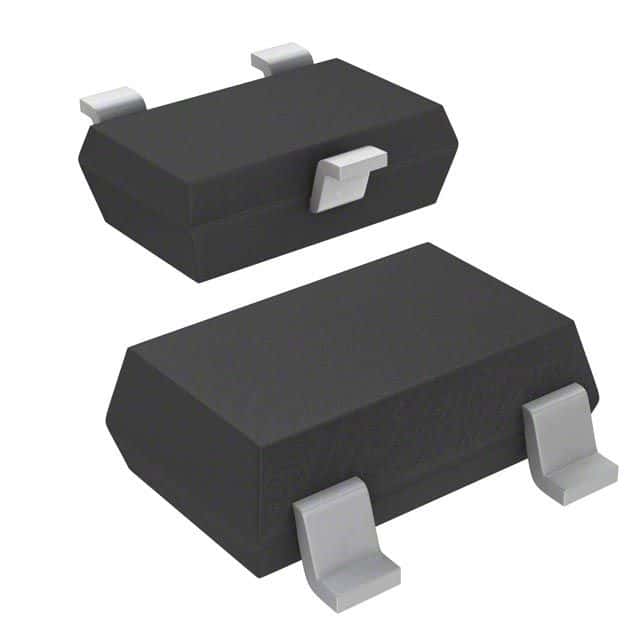

The A3212ELHLT-T is a surface mount, omnipolar switch and Hall effect sensor from Allegro Microsystems. It operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The device is available in a SOT-23 package and is suitable for use in applications where a low current and voltage are required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems A3212ELHLT-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Allegro Microsystems A3212ELHLT-T technical specifications.
| Package/Case | SOT-23 |
| Current Rating | 2mA |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 2.98mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1mA |
| Max Supply Current | 2mA |
| Max Supply Voltage | 3.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 2.75V |
| Output Current | 1mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Type | Omnipolar Switch, Hall Effect Sensor |
| Width | 1.91mm |
| RoHS | Compliant |
